K series Helical Bevel Geared Motor
K series helical bevel geared motor is designed based on module, which bring many difference kinds of combinations, mounting types, and structure designs. The detail classification of ratio can meet various of working condition. High Transmission efficiency, low energy consumption and superior performance. The hard tooth surface gear use the high quality alloy steel, the process of carburizing and quenching, grinding, which give it following characters: Stable transmission, low noise and temperature, high loading and long working life.
Technical parameters
- Ratio range: 5.36…179.86
- Input power: 0.12…200KW (n1=1400r/mim)
- Permit torque range: 200…50000Nm
- Output speed: 0.3~205 r/min
- Housing form: K: Foot mounted
KA: Without foot mounted but with 4 screw thread holes on the bottom plate - Output form: A: Hollow shaft
H: Hollow shaft with shrink disk
V: Hollow shaft with involute spline
Ignore: solid shaft - Input form: IEC flange motor adapter,
Input shaft(AD1, AD2, AD3, AD4, AD5, AD6) - Mounting method: B: Foot mounted
F: Output flange mounted
T: torque arm mounted
Z: B14 flange mounted
Structure drawing:
K series helical bevel geared motor structure drawing
| Housing material | HT200 high-strength cast iron from K37,K47,K57,K67,K77,K87 |
| Housing material | HT250 High strength cast iron from K97,K127,K157,K167,K187 |
| Housing hardness | HBS90-240 |
| Gear material | 20CrMnTi |
| Surface hardness of gear | HRC58°-62° |
| Gear core hardness | HRC33°-40° |
| Input/output shaft material | 40CrMnTi |
| Input/output shaft hardness | HBS241°-286° |
| Shaft at oil seal position hardness | HRC48 ° -55 ° |
| Machining precision of gears material | Accurate grinding 6-5 grade |
| Heat treatment | tempering, cementing, quenching etc |
| Efficiency | up to 90% |
| Noise(Max) | 60-68dB |
| Unit model | Foot mounted,flange mounted,hollow shaft mounted |
| Input method | flange input,inline input,shaft input |
| Vibration | ≤20um |
| Backlash | ≤20Arcmin |
| Bearing brands | NSK,C&U,HRB, etc |
| Oil seal brands | NAK,SKF, CTY, etc |
| Lubricant | VG220 |
| Motor | IP55, F class |
| Motor shaft | 40Cr, Tempering, cementing,quenching etc. |
Characteristic:
1. Adopt optimized design, module combination, right angle output, space reduction
2. High strength and longevity gears
3. Can be combined with various motors, wider ratio range
4. Big output torque, smoothly startup, high efficiency
K series gear units are available in the following designs:
K…Y…Foot-mounted helical-bevel gear units with solid shaft
K37 K47 K57 K67 K77 K87 K97 K107 K127 K157 K167 K187
KA…Y…Helical-bevel gear units with hollow shaft
KA37 KA47 KA57 KA67 KA77 KA87 KA97 KA107 KA127 KA157 KA167 KA187
KAB…Y…Foot-mounted helical-bevel gear units with hollow shaft
KAB37 KAB47 KAB57 KAB67 KAB77 KAB87 KAB97 KAB107 KAB127 KAB157 KAB167 KA187
KAT…Y…Torque-arm mounted helical-bevel gear units with hollow shaft
KAT37 KAT47 KAT57 KAT67 KAT77 KAT87 KAT97 KAT107 KAT127 KAT157 KAT167 KAT187
KAZ..Y..B14 flange mounted helical-bevel gear units with hollow shaft
KAZ37 KAZ47 KAZ57 KAZ67 KAZ77 KAZ87 KAZ97 KAZ107 KAZ127 KAZ157 KAZ167 KAZ187
KF…Y…Flange-mounted helical-bevel gear units with solid shaft
KF37 KF47 KF57 KF67 KF77 KF87 KF97 KF107 KF127 KF157 KF167 KF187
KAF…Y…Flange-mounted helical-bevel gear units with hollow shaft
KAF37 KAF47 KAF57 KAF67 KAF77 KAF87 KAF97 KAF107 KAF127 KAF157 KAF167 KAF187
KA(K, KF ,KAF, KAB ,KAZ)R..Y..Combination helical-bevel gear units
KAF37R17、KAF47R37、KAF57R37、KAF67R37、KAF77R37、KAF87R57、KAF97R57、KAF107R77、KAF127R77
K37R17、K47R37、K57R37、K67R37、K77R37、K87R57、K97R57、K107R77、K127R77
KA37R17、KA47R37、KA57R37、KA67R37、KA77R37、KA87R57、KA97R57、KA107R77、KA127R77
KF37R17、KF47R37、KF57R37、KF67R37、KF77R37、KF87R57、KF97R57、KF107R77、KF127R77
K127R87、K157R97、K167R97、K187R97、K157R107、K167R107、K187R107
KA127R87、KA157R97、KA167R97、KA187R97、KA157R107、KA167R107、KA187R107
KF127R87、KF157R97、KF167R97、KF187R97、KF157R107、KF167R107、KF187R107
KAF127R87、KAF157R97、KAF167R97、KAF187R97、KAF157R107、KAF167R107、KAF187R107
KA(K, KF ,KAF, KAB ,KAZ)…AM132B5…When equipped with the user’s motor, the connection flange(motor adapter) is required to be connected

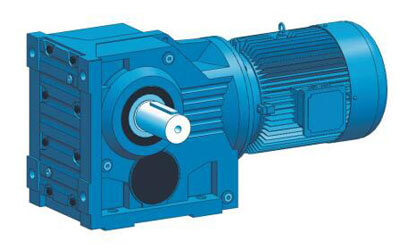

K series Foot-mounted helical-bevel gear units with solid shaft
KA series Helical-bevel gear units with hollow shaft
KAB KVB series Foot-mounted helical-bevel gear units with hollow shaft

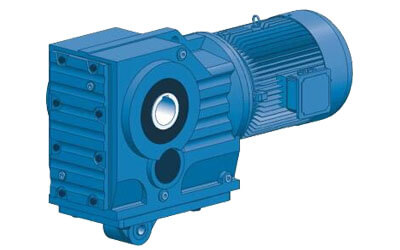

KAT series Torque-arm mounted helical-bevel gear units with hollow shaft
KAZ series B14 flange mounted helical-bevel gear units with hollow shaft
KAF series Flange-mounted helical-bevel gear units with hollow shaft

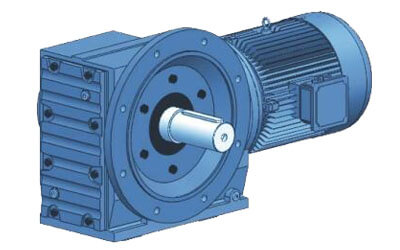

KF series Flange-mounted helical-bevel gear units with solid shaft
K-AD Input shaft helical-bevel gearbox
